Shop / Air Handlers & Heaters / Gold 5TEM6 Variable Speed Air Handler
American Standard

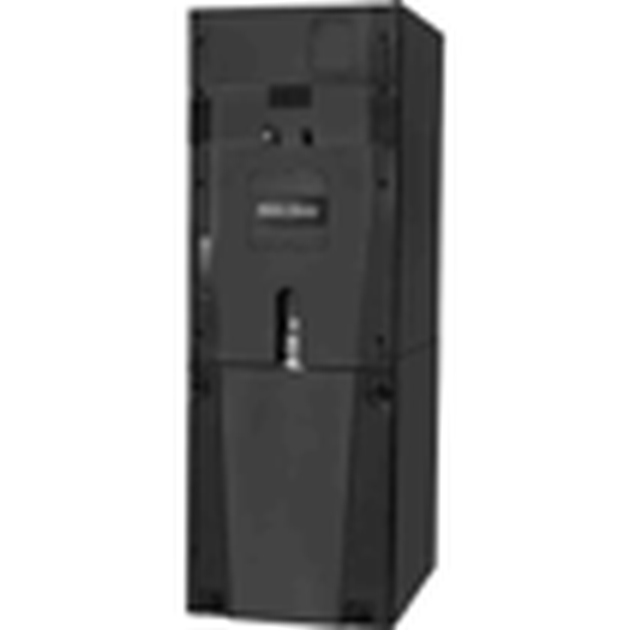

Gold 5TEM6 Variable Speed Air Handler
GoldAir HandlerAvailable
Price on request
Install priced on the call. Equipment price only.
Pick a model and send a request. The Centennial desk calls back with availability and a written price.
Model
- Cooling BTUs
- 24,000
- Height
- 46-3/4"
- Width
- 18-1/2"
- Depth
- 21-1/8"
- Weight
- 126 lb
- Gas line
- 3/4
- Enquire only
- Written quote
- No online payment
Specifications
Select a row to choose that model.
| Model | Catalog status | Cooling BTUs | Height | Width | Depth | Weight | Gas line | Liquid line |
|---|---|---|---|---|---|---|---|---|
| AMS5TEM6B02AV21SA | Available | 24,000 | 46-3/4" | 18-1/2" | 21-1/8" | 126 lb | 3/4 | 3/8 |
| AMS5TEM6B03AV21SA | Available | 30,000 | 46-3/4" | 18-1/2" | 21-1/8" | 126 lb | 3/4 | 3/8 |
| AMS5TEM6D04AV31SA | Available | 42,000 | 51-3/8" | 23-1/2" | 21-1/8" | 155 lb | 7/8 | 3/8 |
| AMS5TEM6D05AV41SA | Non-stock | 48,000 | 51-3/8" | 23-1/2" | 21-1/8" | 155 lb | 7/8 | 3/8 |
| AMS5TEM6D06AV41SA | Available | 60,000 | 51-3/8" | 23-1/2" | 21-1/8" | 185 lb | 7/8 | 3/8 |
| AMS5TEM6D07AV51SA | Available | 60,000 | 57-3/8" | 23-1/2" | 21-1/8" | 185 lb | 7/8 | 3/8 |
