Shop / Air Conditioners / Gold 17 Multi-Stage Air Conditioner
American Standard

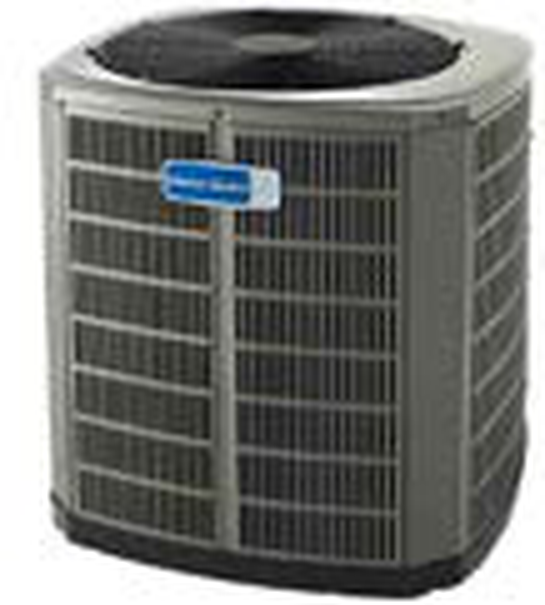

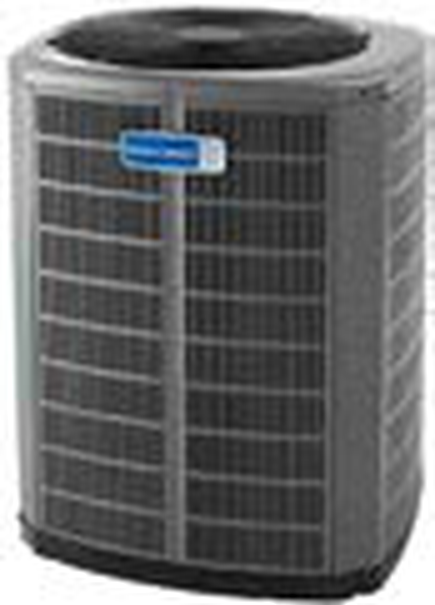

Gold 17 Multi-Stage Air Conditioner
GoldAir Conditioner
Price on request
Install priced on the call. Equipment price only.
Pick a model and send a request. The Centennial desk calls back with availability and a written price.
Single phase.
Model
- Power
- 208/230/1/60
- Height
- 41"
- Width
- 30"
- Depth
- 33"
- Weight
- 176 lb
- Gas line
- 3/4
- Enquire only
- Written quote
- No online payment
Specifications
Select a row to choose that model.
| Model | Catalog status | Power | Height | Width | Depth | Weight | Gas line | Liquid line | MCA | Max amps |
|---|---|---|---|---|---|---|---|---|---|---|
| 5A7A7024A1000A | — | 208/230/1/60 | 41" | 30" | 33" | 176 lb | 3/4 | 5/16 | 19 | 30 |
| 5A7A7036A1000A | Available | 208/230/1/60 | 41" | 30" | 33" | 189 lb | 3/4 | 5/16 | 27 | 40 |
| 5A7A7048A1000A | Non-stock | 208/230/1/60 | 41" | 34" | 37" | 226 lb | 7/8 | 5/16 | 36 | 50 |
| 5A7A7060A1000A | Non-stock | 208/230/1/60 | 41" | 34" | 37" | 236 lb | 7/8 | 5/16 | 43 | 60 |
